Introduction
Chain of custody is the chronological, documented record that tracks who collected, handled, transferred, and stored a piece of evidence from the moment of collection through its appearance in court.
For attorneys, forensic professionals, law enforcement, and corporate legal teams, this documentation is the foundation of evidentiary admissibility. Chain of custody failures are not rare — they are a documented pattern with serious consequences:
- A study of 732 exoneration cases found that 635 involved errors related to forensic evidence.
- The National Registry of Exonerations' 2025 Annual Report identified false or misleading forensic evidence in 40% of that year's exonerations.
This guide covers what chain of custody requires, how it works across physical and digital evidence, where it breaks down, and what the legal consequences look like when it does.
TL;DR
- Chain of custody is the documented paper trail proving evidence hasn't been tampered with, altered, or substituted between collection and trial.
- Every person who touches evidence must be identified; every transfer requires date, time, and signatures.
- A broken chain doesn't automatically exclude evidence, but it weakens the prosecution's case and invites defense challenges.
- Digital evidence appears in an estimated 90% of criminal cases, making rigorous documentation protocols more critical than ever.
- Gaps in custody affect evidential weight rather than admissibility — unless the missing period is complete, which can trigger exclusion.
What Is Chain of Custody?
Chain of custody (also called chain of evidence) is the sequential, unbroken record of custody, control, transfer, analysis, and disposition of physical or electronic evidence. In federal proceedings, authentication is governed by Fed. R. Evid. 901, which requires the proponent to "produce evidence sufficient to support a finding that the item is what the proponent claims it is."
Chain of Custody vs. Chain of Evidence
The terms are often used interchangeably, though the distinction is worth knowing:
- Chain of custody refers to the physical and procedural documentation process — who had the evidence, when, and under what conditions.
- Chain of evidence emphasizes the legal admissibility goal that the documentation is designed to achieve.
In practice, both terms point to the same goal: proving to a judge and jury that the evidence before them is the same item collected at the scene, in substantially the same condition, handled only by authorized personnel.
NIST defines chain of custody as a chronological record of the transfer, handling, and storage of an item from collection to final disposition. That definition applies whether you're talking about a bloody glove, a DNA swab, or a hard drive seized during a corporate fraud investigation.
Why Chain of Custody Matters in Legal Proceedings
Admissibility in Criminal and Civil Cases
Without an established chain of custody, a judge can exclude evidence as unauthenticated. This applies across criminal proceedings — drug possession, homicide, fraud — and civil matters including employment disputes, intellectual property claims, and product liability litigation.
The Innocence Project reports that 52% of its exonerated clients' wrongful convictions involved misapplication of forensic science. That figure covers broader forensic failures, not documentation alone — but it shows how evidence integrity breakdowns translate directly into unjust outcomes.
The Corporate and Litigation Hold Angle
Chain of custody obligations extend well beyond criminal courtrooms. Corporations facing litigation holds, regulatory investigations, or internal misconduct inquiries must maintain defensible evidence records. Under FRCP 37(e), when electronically stored information is lost because a party failed to take reasonable steps to preserve it, courts can impose sanctions ranging from adverse inference instructions to dismissal.
The Federal Judicial Center found that adverse inference instructions — where jurors are told to presume missing evidence was unfavorable — were the most common spoliation sanction, granted in 44% of sanctioned cases.
The Legal Standard
Courts don't require a perfect chain. The offering party must show the evidence is what it claims to be and in substantially the same condition. In United States v. Lott, 854 F.2d 244 (7th Cir. 1988), the court confirmed that gaps in chain of custody normally go to weight, not admissibility — provided the government demonstrates reasonable precautions were taken.
In practice, this means:
- Paperwork errors and minor gaps are survivable when reasonable precautions are documented
- Unexplained, unaccounted custody periods are not — and can result in exclusion
How the Chain of Custody Process Works

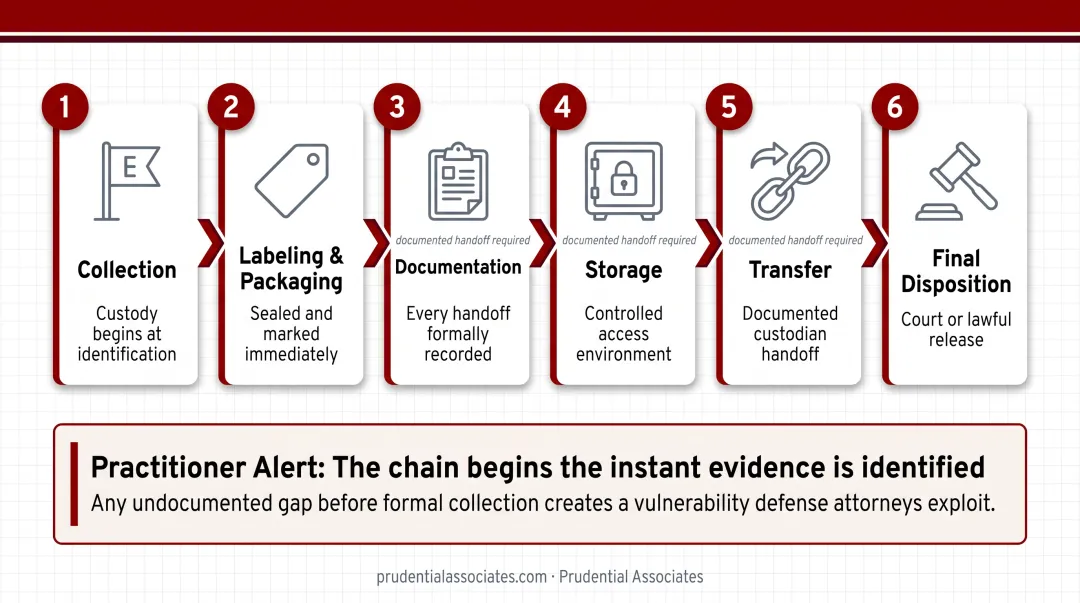

Evidence moves through six phases: collection → labeling and packaging → documentation → storage → transfer → final disposition. Each phase requires a documented handoff and an identifiable custodian of record.
One point that practitioners frequently overlook: the chain begins the instant evidence is identified, not when it reaches the laboratory. Any undocumented gap before formal collection creates a vulnerability defense attorneys exploit.
Step 1: Evidence Collection and Initial Documentation
The collecting officer or examiner must record:
- Date, time, and exact location of collection
- Condition of the item as found
- Their name and badge or credential number
This establishes the baseline against which all future conditions are compared. Contamination risk peaks at this stage. Standard requirements include gloves, sterile containers for biological samples, and write-protected forensic imaging for digital media — all designed to preserve original state before any analysis occurs.
Step 2: Labeling, Packaging, and the Chain of Custody Form
Each item needs a unique identifier (typically case number + item number), a description, collection date and time, and the collector's name. The package must be sealed with tamper-evident tape, signed across the seal.
The chain of custody form must include at minimum:
- Unique case and item identifier
- Collector name and signature
- Recipient name and agency address
- Date and method of delivery
- Analysis authorization
- A running log of signatures, dates, and times for every subsequent transfer
NIST provides a sample chain of custody form through its Biological Evidence Guidance page — a useful reference for agencies developing or auditing their documentation templates.
Step 3: Storage, Transfer, and Final Disposition
Storage must be in a controlled-access facility suited to the evidence type. NISTIR 7928 defines three biological evidence storage categories:
- Frozen: at or below -10°C
- Refrigerated: 2°C to 8°C, less than 25% humidity
- Temperature-controlled: ambient environments with documented climate parameters
Access logs must be maintained. Unauthorized access must leave a detectable record.
Transfer requires documented sign-off from both the releasing and receiving party. The chain of custody form travels with the evidence at all times. Every unnecessary handoff adds a link that can later be challenged — keeping transfers to a minimum reduces that exposure.
Chain of Custody for Digital Evidence
Digital evidence is a factor in an estimated 90% of criminal cases, according to a peer-reviewed 2023 survey article in Forensic Science International: Digital Investigation. That prevalence makes digital chain of custody one of the most consequential areas of evidence law today.
Why Digital Evidence Demands Specialized Protocols
Unlike physical objects, digital files can be altered without visible signs. A single write operation to a storage device can change file metadata and timestamps, potentially rendering evidence inadmissible. Standard paper-based handling procedures are insufficient on their own.

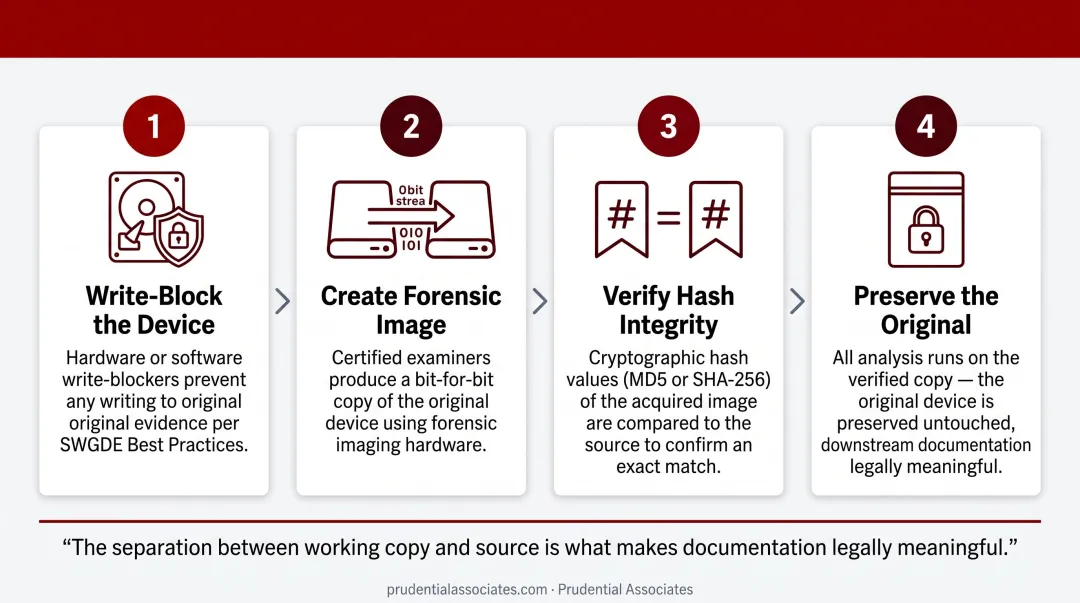

The Forensic Imaging Standard
Certified digital forensic examiners create a bit-for-bit forensic image of the original device using write-blocking hardware. SWGDE Best Practices specify that hardware or software write-blockers must be used when possible to prevent any writing to original evidence. The forensic image's integrity is then verified by comparing cryptographic hash values (MD5 or SHA-256) of the acquired data to the source. All analysis is performed on the copy — the original is preserved untouched. That separation between working copy and source is what makes the documentation step that follows legally meaningful.
Digital Chain of Custody Documentation
The chain of custody form for digital evidence must capture:
- Device make, model, and serial number
- Hash values of both the original and forensic copy
- Imaging tool name and version
- Every person who accessed the forensic copy and for what purpose
- Storage conditions — encrypted, access-controlled — throughout
American Express Travel Related Services Co. v. Vinhnee reinforced that authenticating electronic records requires demonstrating the retrieved record is identical to what was originally created and stored, with documented attention to preservation and anti-tampering procedures.
The Role of Certified Forensic Examiners
Building a digital chain of custody that will hold up in court — across mobile devices, cloud environments, and enterprise networks — requires practitioners with verified, examinable competencies. Relevant credentials include CFCE (issued by IACIS), CDFE, and EnCE (issued by OpenText), along with specialized mobile forensics certifications such as Cellebrite UFED Physical and Logical Pro Certification.
Prudential Associates' examiners hold all of the above credentials, with courtroom testimony experience spanning local, state, and federal proceedings.
Common Chain of Custody Issues and Misconceptions

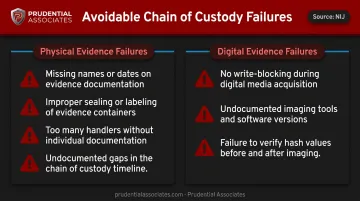

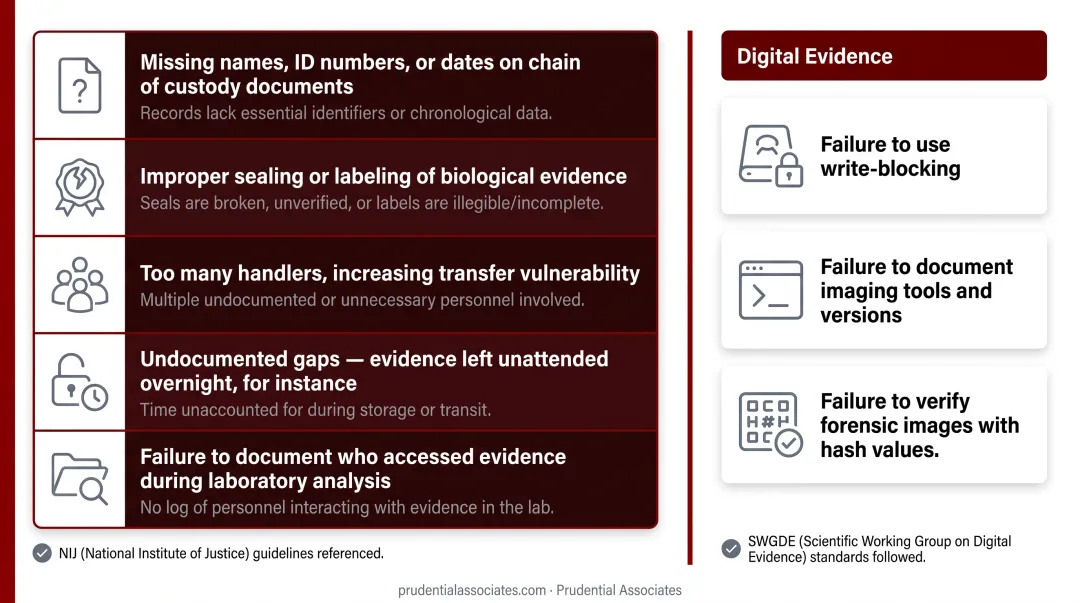

The Most Common Procedural Errors
NIJ flags these avoidable failures most frequently:
- Missing names, ID numbers, or dates on chain of custody documents
- Improper sealing or labeling of biological evidence
- Too many handlers, increasing transfer vulnerability
- Undocumented gaps — evidence left unattended overnight, for instance
- Failure to document who accessed evidence during laboratory analysis
For digital evidence, SWGDE identifies failure to use write-blocking, failure to document imaging tools and versions, and failure to verify forensic images with hash values as the primary weaknesses.
The "Perfect Chain" Misconception
Courts do not demand flawless documentation. Minor gaps generally go to the weight of the evidence — a jury question — rather than admissibility. United States v. Howard-Arias, 679 F.2d 363 (4th Cir. 1982), confirms that a missing link does not automatically bar admission. The threshold is whether sufficient proof exists that the evidence is what it purports to be and has not materially changed.
The distinction matters: a paperwork error is recoverable. An entire unaccounted period — where no authorized custodian can explain the evidence's location and condition — is categorically different and can result in exclusion.
Evidence Handling vs. Chain of Custody
These are related but distinct:
- Evidence handling covers all physical acts of collecting, storing, and testing.
- Chain of custody is specifically the documented record of who had the evidence and when.
Both must be sound. When handling errors occur, they may affect evidence integrity — but a broken chain of custody is what gives opposing counsel grounds to challenge admissibility outright.
What Happens When the Chain of Custody Is Broken
Defining a "Broken" Chain
A break occurs when no authorized custodian can account for the evidence's location and condition during a given period. This is distinct from a minor documentation gap or paperwork irregularity. State v. Serl, 269 N.W.2d 785 (S.D. 1978), illustrates where courts draw that line: the South Dakota Supreme Court found the chain inadequate for a controlled substance because fungible, alterable evidence demands a higher standard of accountability — meaning any substance that can be tampered with, substituted, or consumed requires especially rigorous documentation at every transfer.

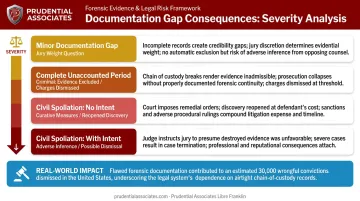

Legal Consequences
The consequences range depending on severity and case type:
| Scenario | Likely Outcome |
|---|---|
| Minor documentation gap | Goes to weight; jury decides credibility |
| Complete unaccounted period (criminal) | Evidence excluded; charges may be dismissed |
| Spoliation in civil case (no intent) | Curative measures, reopened discovery |
| Spoliation with intent to deprive (civil) | Adverse inference instruction, possible dismissal |
The Massachusetts drug lab scandals illustrate what systemic evidence integrity failures look like at scale. Misconduct by analysts Annie Dookhan and Sonja Farak ultimately resulted in roughly 30,000 tainted convictions being dismissed — a direct consequence of forensic evidence integrity failures.
How Defense Attorneys Attack the Chain
The defense strategy is methodical: attack each link. Was the item properly marked? Was storage secure? Did lab technicians document their access? If the prosecutor cannot establish sufficient foundation for even one critical transfer, the judge may exclude the evidence entirely.
Attorneys handling evidence-heavy cases should audit chain of custody documentation before trial, not during cross-examination. Prudential Associates conducts pre-trial chain of custody reviews — including independent examination of digital forensic work produced by government examiners — so vulnerabilities are identified before they surface in court.
Frequently Asked Questions
What is chain of custody in evidence?
Chain of custody is the chronological, documented record of every person who collected, handled, transferred, and stored a piece of evidence — proving to the court that it is authentic and has not been tampered with between collection and trial.
What is an example of chain of custody for evidence?
In a drug possession case, the arresting officer seizes and labels a packet, transfers it to an evidence clerk who logs it into secure storage, and a forensic chemist later signs it out for analysis. Each handoff is documented with signatures, dates, and times.
How do you prove chain of custody for evidence?
The offering party presents documentation and, if needed, witness testimony for each transfer. This establishes who had the evidence, when, where it was stored, and that it remained in substantially the same condition throughout.
How do you document chain of custody for evidence?
A chain of custody form must accompany evidence, recording a unique identifier, collector details, dates and times of every transfer, signatures of each custodian, storage conditions, and the reason for each movement.
How do you maintain chain of custody for digital forensic evidence?
Forensic examiners use write-blocking hardware to create a verified forensic image, confirm integrity with cryptographic hash values, and document every person who accessed the copy — performing all analysis on the copy, not the original device.
Who is responsible for chain of custody for evidence?
Responsibility is shared across everyone who touches the evidence. The collecting officer establishes the chain; evidence custodians maintain it during storage; laboratory analysts continue it during testing; and prosecutors must account for the full chain at trial.
