Email-based attacks have become a significant financial threat. The FBI's IC3 2025 Annual Report recorded $3,046,598,558 in business email compromise losses from 24,768 complaints in 2025 alone. Phishing and spoofing accounted for another 191,561 complaints and over $215 million in losses. These aren't abstract statistics — behind each one is a forged header, a manipulated sender field, or a spoofed domain that someone failed to scrutinize.
This guide breaks down exactly what email headers contain, how to read them correctly, and what separates a thorough forensic analysis from a surface-level scan.
TL;DR
- Email header forensics analyzes routing paths, IP addresses, and authentication results to trace an email's true origin
- Key fields to examine: Received, From, Return-Path, Message-ID, and the Authentication-Results block (SPF, DKIM, DMARC)
- Always read Received headers bottom-to-top — the oldest hop appears at the bottom
- Watch for mismatched From/Return-Path domains, SPF failures, unexpected routing geography, and malformed Message-IDs
- Legal-grade analysis requires chain of custody documentation, hash verification, and court-admissible reporting
What Is Email Header Forensics and Why Does It Matter?
Email header forensics is the structured examination of the metadata block prepended to every email message. This metadata records the technical facts of transmission: where the message originated, which servers handled it, when each hop occurred, and whether authentication checks passed.
Email header standards are defined by RFC 5322 (updated from RFC 2822 and the original RFC 822 in 1982), establishing the format every compliant mail server must follow.
This is distinct from analyzing the email body or attachments. Header forensics focuses purely on transmission records and identity signals.
Where It Applies
Header analysis appears across a wide range of investigative contexts:
- Phishing and spoofing incident response — tracing fraudulent emails to their actual origin
- Business email compromise investigations — identifying whether a sender was impersonated or an account was compromised
- **Corporate fraud and insider threat cases** — establishing whether communications are authentic
- Legal proceedings — verifying email evidence for use in court
- Compliance investigations — auditing email transmission records against policy
Basic Viewing vs. Forensic-Grade Analysis
Any IT professional can pull up a raw header in Gmail or Outlook. Forensic-grade analysis is different. It involves:
- Preserving the original, unmodified header with hash verification
- Maintaining documented chain of custody
- Detecting anti-forensic manipulation (injected false hops, timestamp tampering)
- Producing findings in a format admissible as legal evidence
Without that rigor, headers can be challenged or excluded — undermining an investigation before it reaches a courtroom or a boardroom decision.
Key Email Header Components Every Investigator Must Know
Received Fields: The Forensic Backbone
Every mail server that handles an email appends its own Received line. Together, these lines create a chronological log of the transmission path. RFC 5321 requires SMTP servers to insert this trace information; RFC 5322 defines its format.
Critical rule: Read Received fields bottom-to-top. The bottom entry is the first hop — the originating server. Each entry upward represents a subsequent relay until the email reaches its destination.
Each Received line typically contains:
- Sending and receiving hostnames
- IP addresses (in brackets)
- Protocol used
- Timestamp of that relay
Geographic and network inconsistencies in this chain are often the first indicator of manipulation.
From, Reply-To, and Return-Path
These three fields are frequently abused and routinely misunderstood:
- From — Displays what the sender wants you to see. It can be freely spoofed and carries no authentication weight on its own
- Return-Path — Reveals where bounce messages are sent; this field is harder to fake convincingly and often differs from From in malicious emails
- Reply-To — A common phishing vector; attackers set this to an attacker-controlled address so that replies go somewhere entirely different from the apparent sender
In legitimate email, these three fields typically align. Divergence between them is a meaningful red flag.
Message-ID
RFC 5322 defines Message-ID as a globally unique identifier assigned by the originating mail server. Its standard format combines a timestamp, a unique string, and the sending domain: for example, <20250601143022.1a2b3c@example.com>.
Forensic investigators use Message-ID to:
- Detect forgery (malformed structure, domain that doesn't match the From field)
- Link emails within threads using the
ReferencesandIn-Reply-Tofields - Identify bulk-mailing infrastructure, which generates Message-IDs with distinct formatting patterns

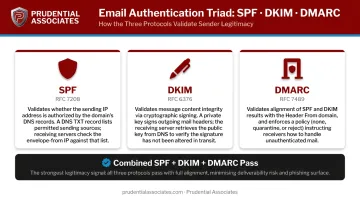

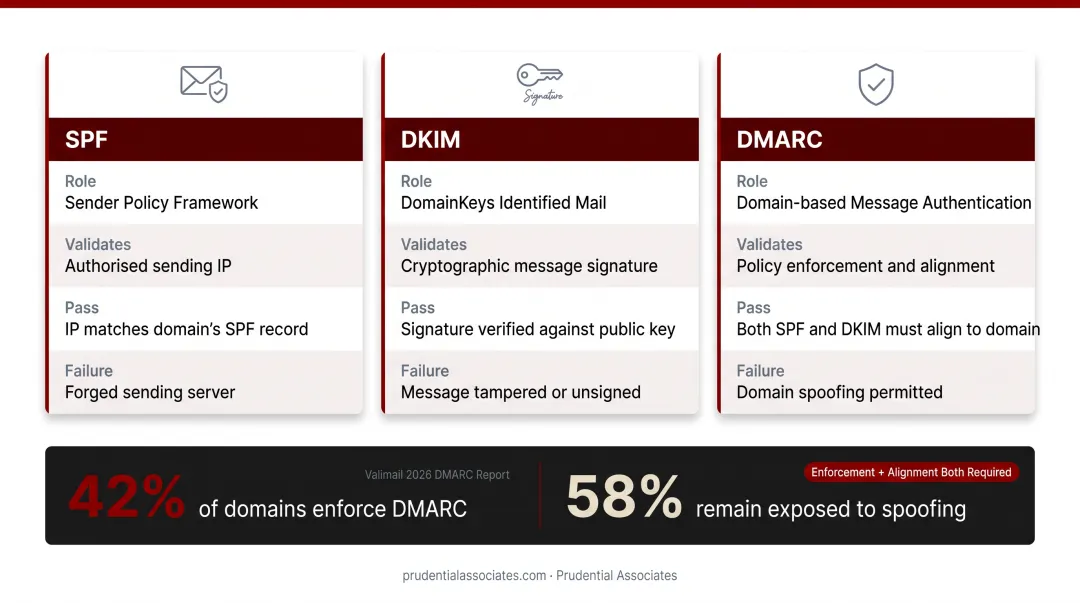

SPF, DKIM, and DMARC: The Authentication Triad
The Authentication-Results field summarizes the outcome of three checks — and it's one of the first places an experienced analyst looks.
| Protocol | What It Validates |
|---|---|
| SPF (RFC 7208) | Whether the sending IP is authorized by the domain's DNS records |
| DKIM (RFC 6376) | Whether the message content was signed by the claimed domain |
| DMARC (RFC 7489) | Whether SPF and DKIM align with the From domain, with an enforcement policy |
A combined pass on all three is a strong legitimacy signal. Any failure warrants deeper investigation. Valimail's 2026 DMARC report found only 42% of domains enforce DMARC, leaving 58% exposed to spoofing. A DMARC pass alone doesn't confirm a well-protected domain — enforcement policy and alignment both matter.
X-Headers and Non-Standard Fields
X-headers are custom metadata fields added by mail systems, security gateways, or email clients. Common examples include X-Spam-Status, X-Mailer, and X-Originating-IP. Their presence and content reveal:
- The software stack used to send the email
- Security gateway scan results
- Sender client information
These fields vary by provider and configuration, so treat them as supporting evidence — useful for corroborating findings from Received fields and authentication results rather than as standalone proof.
How to Analyze Email Headers: A Step-by-Step Forensic Process
Real header analysis differs from a checklist. Headers can contain fragmented lines, encoding variations, and deliberately injected false hops. A methodical approach prevents misattribution.
Step 1 – Access and Preserve the Raw Header
Access full raw headers through the email client:
- Gmail: More options → Show original
- Outlook: File → Properties → Internet headers
- Apple Mail: View → All Headers (Mac) or Show All Headers (iCloud)
- Yahoo Mail: More → View Raw Message
For forensic purposes, preserve the raw header in its original, unmodified form before any analysis. Document it as part of the case record and compute a cryptographic hash to verify integrity. Per NIST SP 800-86, chain-of-custody logs should record every person with custody, actions performed, times, and locations.

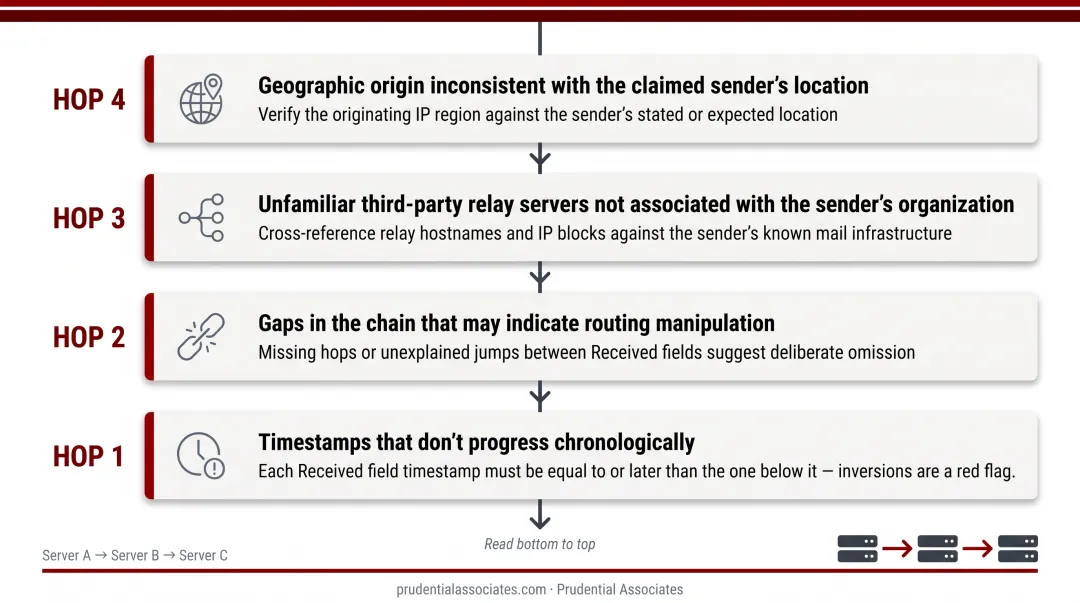

Step 2 – Map the Transmission Path via Received Fields
Read Received fields from bottom to top. Each hop should show a logical progression — server A passes to server B, which passes to server C. Look for:
- Geographic origin inconsistent with the claimed sender's location
- Unfamiliar third-party relay servers not associated with the sender's organization
- Gaps in the chain that may indicate routing manipulation
- Timestamps that don't progress chronologically
Step 3 – Verify Sender Identity Fields
Cross-check these data points against each other:
- Domain in the
Fromaddress - Domain in the
Return-Path - Sending IP in the bottom Received field
- DKIM signature domain (the
d=tag in theDKIM-Signatureheader)
Any misalignment is a potential spoofing indicator. Sophisticated attacks may pass authentication on a lookalike domain — the mismatch is subtle but detectable.
Step 4 – Evaluate Authentication Results
Interpret the Authentication-Results field systematically. Each result carries a different investigative weight:
- SPF pass: The sending IP is explicitly authorized. Treat as a baseline, not a clearance.
- SPF softfail (~all): The IP isn't explicitly authorized but isn't blocked either. Investigate further before drawing conclusions.
- SPF hardfail (-all): The sending IP is explicitly unauthorized. Treat as a strong spoofing indicator.
- DKIM pass: Message integrity is confirmed for the signing domain. Note which domain signed — it may differ from the
Fromdomain. - DMARC pass with alignment: The strongest combined signal, but only meaningful when the policy is
quarantineorreject. - DMARC with p=none: Monitoring mode only. This result provides no protection against spoofing and should not be weighted as a pass.
Step 5 – Analyze Timestamps for Inconsistencies
Each Received hop includes a timestamp. Three patterns warrant close attention:
- Chronological gaps: Hours between hops instead of seconds or minutes suggest delayed injection or message holding.
- Discrepancies between server timestamps and the
Datefield may reflect tampering or deliberate timezone manipulation. - Timestamps that run backwards are a definitive sign of header manipulation and should be documented immediately.
Email Header Forensics in Action: A Practical Walkthrough
Here's how this process plays out in a realistic scenario.
A corporate legal team receives an urgent wire transfer authorization that appears to come from a senior executive. The email looks authentic: correct name, familiar tone, and plausible context. Before anyone acts on it, a forensic examiner is brought in.
First step: secure the raw header before any further interaction with the email.
What the Examiner Finds
Reading the Received chain bottom-to-top, the examiner identifies that the first hop originates from a server IP in a geography inconsistent with the executive's known location. Three additional findings emerge:
- The DKIM signature domain doesn't match the visible From domain — it's a subtly different domain
- The Return-Path points to an unrelated third-party domain
- The Message-ID structure is consistent with bulk-mailing infrastructure, not a corporate mail server
The Authentication Picture
The three authentication checks each returned a different result:
- SPF: Softfail — the sending IP wasn't explicitly authorized, but wasn't hard-blocked
- DKIM: Passed, but on the alternate domain, not the executive's actual domain
- DMARC: Passed alignment on that same alternate domain
This combination is exactly what automated filters can miss. The email clears enough checks to avoid the spam folder, but the pattern points to BEC via a lookalike domain — the attacker registered a domain resembling the executive's and configured it with valid authentication records.

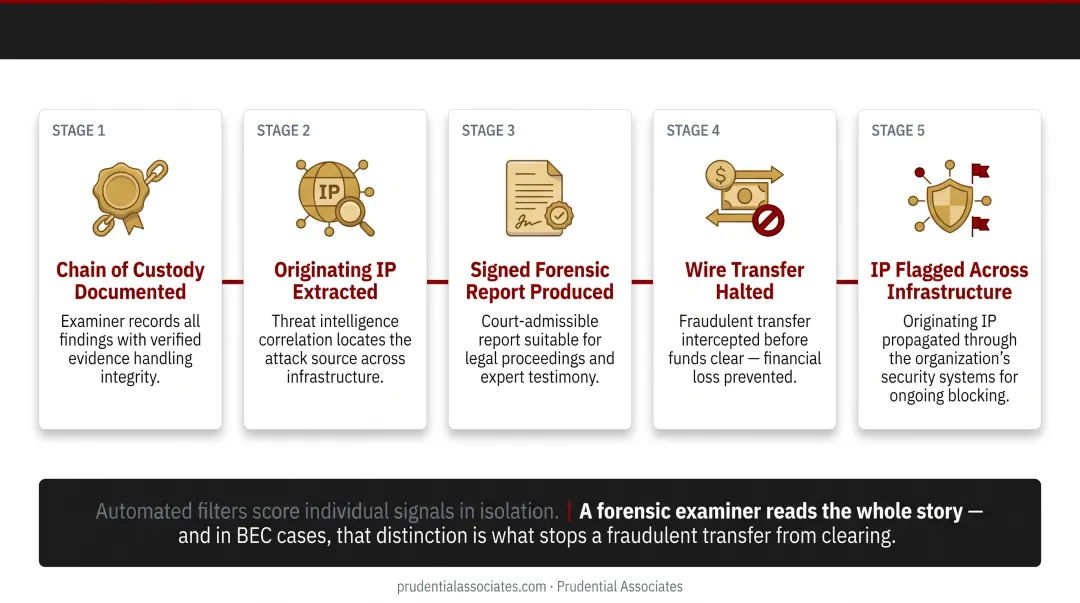

The Outcome
The examiner documents findings with chain of custody, extracts the originating IP for threat intelligence correlation, and produces a signed forensic report. The wire transfer is halted. The report is suitable for legal proceedings, and the originating IP is flagged across the organization's security infrastructure.
Automated filters score individual signals in isolation. A forensic examiner reads the whole story — and in BEC cases, that distinction is what stops a fraudulent transfer from clearing.
How Prudential Associates Supports Email Forensic Investigations
Professional email forensic analysis requires examiners who understand both the technical and legal dimensions of the work — not just tools that parse headers.
Prudential Associates has operated since 1972 and holds credentials directly applicable to email forensics — including GCFA, EnCE, CISSP, CEH, CDFE, CFCE, GCIH, and GREM, among 30+ certifications.
That credential mix matters for email cases. GREM applies to analyzing malicious payloads delivered through email, while GCFA and CFCE cover the evidence-handling methodology that makes findings court-admissible.
Prudential's Compromised Email Investigations and BEC services are designed specifically for situations where email systems have been breached, impersonated, or weaponized for fraud. The firm handles:
- Evidence preservation with documented chain of custody
- Header and metadata analysis as part of broader digital forensic investigations
- Expert witness testimony at state and federal levels — CEO Jared Stern has testified as a fact witness on over 500 occasions
- Actionable intelligence reporting for corporate clients, attorneys, and government agencies
Engagements are served nationally, with strong roots in the Maryland, Washington DC, and Virginia corridor. For organizations facing email fraud, insider threats, or litigation requiring authenticated email evidence, contact Prudential Associates to discuss how their certified examiners can support your investigation.
Frequently Asked Questions
What is header analysis in email forensics?
Email header analysis is the structured examination of an email's metadata block to extract evidence about its origin, routing path, authentication status, and signs of manipulation. Forensic investigators use it to support cybercrime investigations, verify email authenticity, and produce court-admissible documentation.
Which tool is commonly used for email header analysis?
For initial triage, free parsers like MxToolbox Email Header Analyzer or Google Admin Toolbox Messageheader work well. Legal-grade investigations require platforms like MailXaminer or full forensic suites (EnCase, Magnet AXIOM) that handle evidence preservation, case management, and chain-of-custody documentation.
How can a forensic investigator use Received fields to trace a message back to its original sender?
Read Received fields from bottom to top, then cross-reference the earliest IP against DNS records, geolocation databases, and threat intelligence feeds. Proxies, VPNs, or compromised relays can obscure the true origin — which is why multiple corroborating signals are essential.
What should I look for when analyzing email headers?
Key red flags to examine:
- Misalignment between From, Return-Path, and DKIM signing domains
- SPF softfail or hardfail results
- Unusual geographic routing or timestamp anomalies in Received fields
- Malformed or reused Message-IDs
- Reply-To addresses that differ from the apparent sender
Which type of forensics focuses on analyzing email headers?
Email header analysis falls under email forensics, a subdiscipline of digital forensics. It focuses specifically on the metadata and transmission records of email communications — distinct from analyzing message content, attachments, or mailbox artifacts.
Why does analyzing email headers matter during security incidents?
Headers provide ground truth about where a threat originated, which servers were involved, and whether authentication was bypassed or spoofed. That intelligence drives containment decisions, supports threat actor attribution, and enables security teams to close the specific vectors exploited.
