The problem isn't finding email evidence. It's collecting it correctly. Screenshots get excluded. Forwarded copies lose metadata. Informal collection methods hand opposing counsel an easy challenge — and courts have rejected email evidence outright when authentication was inadequate (see Lorraine v. Markel American Insurance Co.).
This guide walks investigators, attorneys, and corporate clients through the complete Gmail forensics process: from acquisition and header analysis to authentication protocols and court-ready reporting.
TL;DR
- Gmail forensics covers the systematic acquisition, analysis, and preservation of email data — headers, metadata, content, and attachments — for use as legal evidence
- Google Takeout (MBOX export) and "Show Original" are starting points; professional tools extract significantly more recoverable data
- Email headers record every server hop, IP address, and timestamp — and are the first place forensic examiners look
- SPF, DKIM, DMARC, and ARC reveal spoofed senders, tampered messages, and forged routing data
- Chain of custody, hash verification, and certified examiner involvement determine whether evidence holds up in court
What Is Gmail Email Forensics?
Gmail email forensics is the process of acquiring, examining, and preserving digital evidence from Gmail accounts using forensically sound methods. The scope covers emails, headers, metadata, attachments, and account activity.
NIST SP 800-86 defines this as a structured process of collection, examination, analysis, and reporting, with strict chain of custody documentation at every stage.
Where Gmail Forensics Applies
Three investigation contexts drive the majority of Gmail forensics work:
- Internal corporate investigations — policy violations, data theft, harassment, departing employee exfiltration
- Civil litigation and eDiscovery — employment disputes, contract breaches, fraud, trade secret misappropriation
- Criminal investigations — cybercrime, financial crimes, threats, coordinated attacks

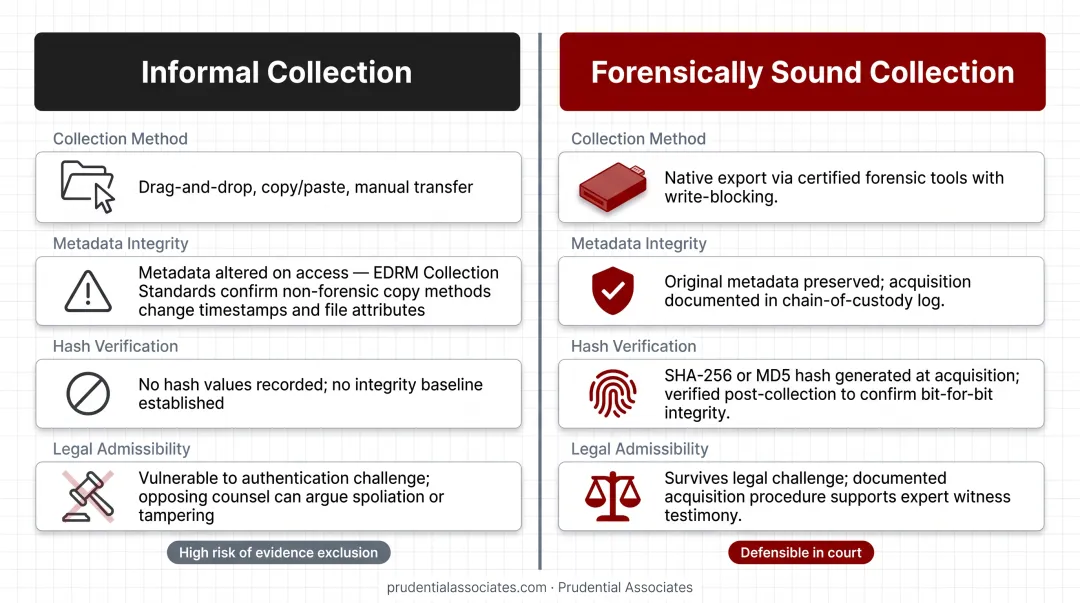

Informal Collection vs. Forensically Sound Collection
How evidence is collected in each of those contexts determines whether it holds up in court. This distinction matters more than most clients expect.
| Method | Preserves Metadata | Chain of Custody | Courtroom Risk |
|---|---|---|---|
| Screenshot | No | None | High — easily challenged |
| Forwarded copy | Partial | None | High — alters headers |
| Native MBOX export + hash | Yes | Documented | Low — defensible |
| Legal process (subpoena/warrant) | Yes | Documented | Low — court-authorized |
EDRM's Collection Standards note that non-forensic copy methods (drag-and-drop, copy/paste) can alter metadata. Only native exports with documented acquisition procedures and hash verification survive legal challenge.
How Gmail Email Forensics Works: Step-by-Step
Gmail forensics follows a structured, repeatable workflow — skipping any step can compromise admissibility.
Step 1 – Define Scope and Objectives
Before touching any data, establish what the investigation needs to prove or disprove:
- Which accounts are involved and what timeframe applies
- What specific communications are relevant
- What legal or compliance framework governs the inquiry (FRCP, state court rules, internal policy)
- Whether the account holder is a cooperating party or the investigation's subject
Step 2 – Acquire Gmail Data Using Forensically Sound Methods
Two primary acquisition paths exist:
Google Takeout (MBOX export): Used when the account holder authorizes access. Google allows users to export Gmail data as an MBOX archive — appropriate for cooperative matters such as internal investigations, eDiscovery where the custodian is a party, or counsel-authorized exports.
Legal process directed at Google: U.S. authorities need a search warrant to compel disclosure of email content in criminal matters. For civil proceedings, Google accepts subpoenas and court orders from the Santa Clara Superior Court or the Northern District of California. Google's 2025 Transparency Report documents 287,014 global user-information requests covering 664,767 accounts. Information was disclosed in approximately 82% of cases.
Regardless of acquisition path, write-protected forensic copies must be created before any analysis begins.
Step 3 – Generate and Verify Cryptographic Hashes
SHA-256 hashes, as specified in NIST FIPS 180-4, must be generated on acquired files immediately after collection. This creates a mathematically verifiable baseline: any alteration to the evidence file, including a single bit, produces a completely different hash value. Federal Rule of Evidence 902(14) specifically references hash values as the mechanism for authenticating copied electronic data.
Document the hash value, the algorithm used, and the date and time of generation. This record becomes a cornerstone of the chain of custody.

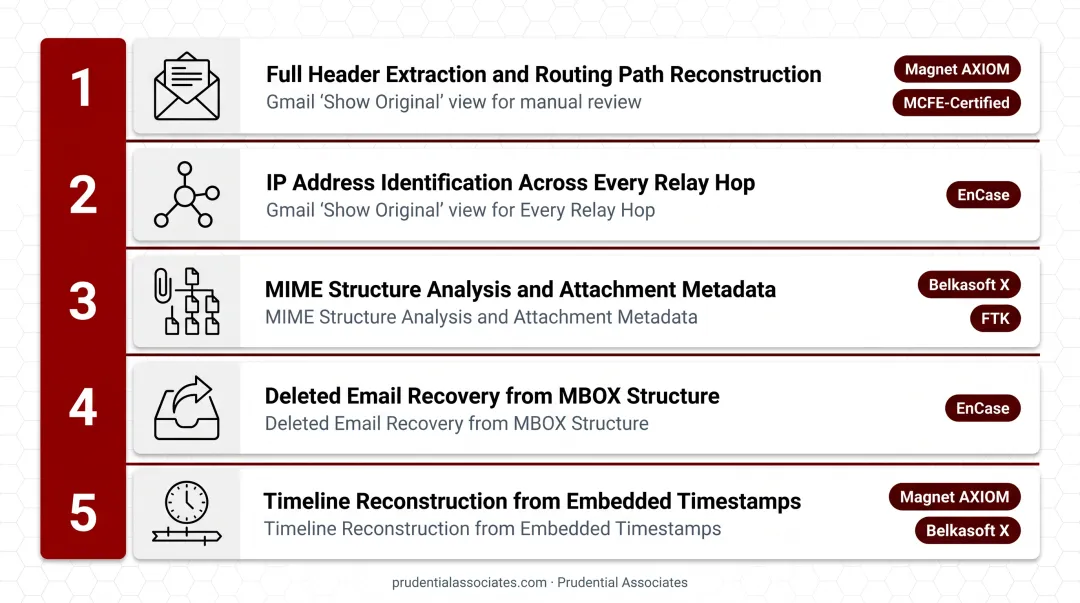

Step 4 – Extract and Parse Headers, Metadata, and Attachments
Gmail's "Show Original" view surfaces the full header for manual review. Professional forensic tools — Magnet AXIOM (with MCFE-certified examiners), EnCase, Belkasoft X, and FTK — parse this data at scale:
- Full header extraction and routing path reconstruction
- IP address identification across every relay hop
- MIME structure analysis and attachment metadata
- Deleted email recovery from MBOX structure
- Timeline reconstruction from embedded timestamps
Step 5 – Analyze Content, Correlate Artifacts, and Identify Patterns
This stage transforms raw data into actionable evidence through four primary techniques:
- Keyword searches across bulk email for relevant terms, names, or document identifiers
- Timeline analysis aligning email activity with known events (resignation dates, data access logs, financial transactions)
- Relationship mapping to surface communication networks between accounts
- Attachment scanning for malicious files, embedded metadata, and document authorship data
Step 6 – Document Findings and Produce Court-Admissible Reports
The forensic report must document:
- Methodology and tools used
- Chain of custody from acquisition through analysis
- Hash values at acquisition and at report generation
- Findings, with supporting exhibits
- Examiner credentials and certification
Output formats typically include PDF narrative reports, CSV data exports, native EML files, and timeline exhibits, each hash-verified and formatted for production to counsel.
Gmail Header Fields and Authentication Protocols: What to Look For
The Gmail message header is the forensic backbone of any email investigation. It records the complete path a message traveled — every server hop and timestamp — and alterations leave detectable traces.
Key Header Fields
| Field | What It Reveals |
|---|---|
| Received | Each server hop the email took, with IP addresses and timestamps — reconstructs the full SMTP path |
| X-Received | Google's internal server handling data, including the sending IP at the point of origination |
| Return-Path | The bounce address; can be spoofed but cross-referenced with SPF records |
| Message-ID | A globally unique identifier assigned by the originating server — useful for tracking and correlation across related messages |
| Delivered-To | Confirms the intended recipient; can expose phishing redirects where delivery diverges from the apparent addressee |
| X-Mailer | Reveals the email client or software used — useful for identifying bulk-sending tools, spoofing platforms, or inconsistencies with the claimed sender's environment |

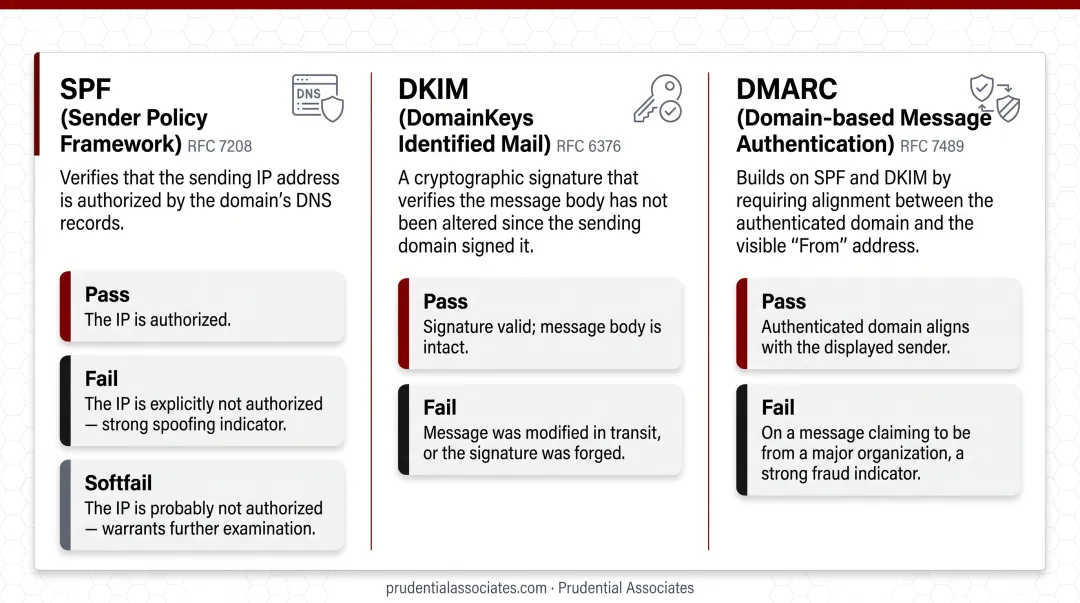

Authentication Protocol Results
These header fields establish the path. The authentication records embedded within them answer a separate but equally critical question: whether the message is legitimate or spoofed. Three protocols govern that determination:
SPF (Sender Policy Framework, RFC 7208) — Verifies that the sending IP address is authorized by the domain's DNS records.
- Pass: The IP is authorized
- Fail: The IP is explicitly not authorized — strong spoofing indicator
- Softfail: The IP is probably not authorized — warrants further examination
DKIM (DomainKeys Identified Mail, RFC 6376) — A cryptographic signature that verifies the message body has not been altered since the sending domain signed it.
- Pass: Signature valid; message body is intact
- Fail: Message was modified in transit, or the signature was forged
DMARC (Domain-based Message Authentication, RFC 7489) — Builds on SPF and DKIM by requiring alignment between the authenticated domain and the visible "From" address.
- Pass: Authenticated domain aligns with the displayed sender
- Fail: On a message claiming to be from a major organization, a strong fraud indicator
Detecting Tampering with ARC Records
The Authenticated Received Chain (ARC), standardized in RFC 8617 (2019), preserves the original sender's authentication results when email passes through intermediary servers. Forwarding services, mailing lists, and corporate relays can otherwise break SPF and DKIM alignment, making the message appear unauthenticated even when it wasn't tampered with.
ARC uses three header sets:
- ARC-Authentication-Results — Records authentication assessments at each hop
- ARC-Message-Signature — Identifies the custodian and message responsibility
- ARC-Seal — Verifies the integrity of the ARC header sets themselves
Missing, broken, or inconsistent ARC records limit the ability to rely on a preserved intermediary authentication chain. Combined with other header anomalies, broken ARC can support findings of tampering, header injection, or an untrusted forwarding path — though ARC alone is not conclusive.
Gmail Forensics in Action: A Case Walkthrough
Consider this scenario: an attorney representing a corporate client suspects a departing employee forwarded confidential documents to a personal Gmail account during the two weeks before resignation. Here's how the investigation unfolds forensically.

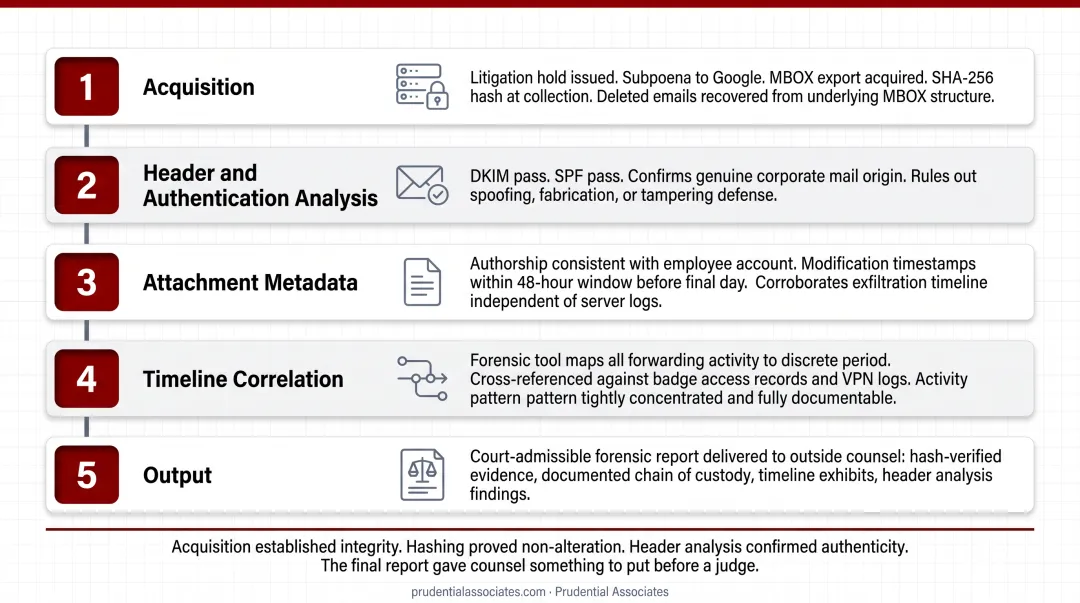

The investigation moves through five documented phases:
Acquisition — Counsel issues a litigation hold and authorizes access to the company's email server logs. A subpoena is directed to Google for the relevant account data. The MBOX export is acquired, SHA-256 hashed at collection, and loaded into a forensic tool. Deleted emails are recovered from the mailbox structure, including messages that no longer appear in the standard interface but persist in the underlying MBOX data.
Header and authentication analysis — Examination of recovered messages identifies a series of emails sent to an external Gmail address. DKIM pass and SPF pass on each message confirm they were genuinely sent from the corporate mail system, not spoofed or fabricated. This rules out any defense that the emails were planted or tampered with before recovery.
Attachment metadata — Document properties embedded in the forwarded attachments reveal authorship consistent with the employee's account, with modification timestamps falling within the 48-hour window before their last day. This corroborates the exfiltration timeline without relying solely on server logs.
Timeline correlation — The forensic tool's timeline function maps all forwarding activity to a discrete period, cross-referenced against badge access records and VPN logs provided by the client's IT team. The activity pattern is tightly concentrated and fully documentable.
Output — A court-admissible forensic report is delivered to outside counsel: hash-verified evidence, documented chain of custody, timeline exhibits, and header analysis findings.
Each phase directly supports the legal outcome. Acquisition established integrity. Hashing proved non-alteration. Header analysis confirmed authenticity. The final report gave counsel something to put before a judge.
How Prudential Associates Can Help
Prudential Associates has served corporate clients, government agencies, and the legal community since 1972. The firm's certified examiners hold credentials directly applicable to Gmail and email forensics work — EnCE, GCFA, CFCE, CEDS, CEECS, and MCFE — with at least two MCFE-credentialed examiners on staff.
The firm's CEO, Jared Stern, is a certified computer forensic examiner who has testified as a fact and expert witness in court on more than 500 occasions at the local, state, and federal levels.
Email Forensics Services
Prudential Associates' Compromised Email Investigations service covers the full scope of Gmail-related matters:
- Forensically sound email acquisition and preservation (Google Takeout, legal process, and server-side collection)
- Complete header and metadata analysis
- Spoofed sender and tampered message detection using SPF, DKIM, DMARC, and ARC examination
- Attachment and malware analysis
- Deleted email recovery from MBOX structures
- Expert witness testimony and court-admissible forensic reporting
- End-to-end litigation support for law firms and corporate counsel
The firm also handles insider threat investigations, business email compromise matters, and eDiscovery support — all conducted using forensically sound acquisition with full chain of custody documentation.
Engaging a certified examiner early protects the integrity of your evidence and preserves options for litigation. Contact Prudential Associates at +1 301-279-6700 to discuss the specific facts of your matter.
Frequently Asked Questions
What is email forensics?
Email forensics is the process of acquiring, examining, and preserving email data — including headers, metadata, content, and attachments — using forensically sound methods. The goal is to produce findings that hold up in legal, compliance, or investigative proceedings.
How can you tell if an email has been altered?
Examiners check DKIM signatures first — a failed DKIM means the message body was changed after the sending domain signed it. ARC records are reviewed for broken authentication chains, and hex-level comparison can surface structural inconsistencies that indicate injection or forgery.
What is the best email forensic tool?
It depends on the investigation's scope. Widely used professional tools include Magnet AXIOM, Belkasoft X, EnCase, and FTK, all capable of parsing Gmail MBOX exports, recovering deleted emails, and producing court-admissible reports. Tool selection should be driven by the data sources in play and the certifications held by the examining team.
Can deleted Gmail emails be recovered for forensic analysis?
Deleted Gmail emails may be recoverable from the MBOX mailbox structure, server-side backups, or through legal process directed at Google. Professional forensic tools can parse these sources to surface messages that no longer appear in the standard Gmail interface.
Is Gmail email evidence admissible in court?
Gmail evidence is admissible under Federal Rule of Evidence 901 when collected using forensically sound methods that preserve metadata, maintain chain of custody, and are documented by a qualified examiner. Screenshots and forwarded copies are routinely challenged and may be excluded, as Lorraine v. Markel demonstrated.
Does Gmail scan emails for malware?
Gmail scans incoming messages and attachments for known malware and phishing threats, blocking more than 99.9% of spam and malicious content daily. That filtering is a security control, not a substitute for forensic attachment analysis. A certified examiner can detect embedded malicious code, document metadata, and indicators of compromise that Gmail's automated systems do not flag.
