Most people equate network forensics with "reviewing logs." That framing misses the point. The discipline is governed by chain-of-custody requirements, evidence integrity standards, and legal admissibility rules that determine whether findings can hold up in court, before a regulator, or in front of a board.
This article walks through each step of the network forensics process, explains why the sequence is non-negotiable, and identifies what separates an investigation that produces actionable, defensible evidence from one that doesn't.
TL;DR
- Network forensics examines data moving across a network — not just stored on devices — to reconstruct how an attack unfolded across interconnected systems.
- The process follows seven structured steps, from initial identification through incident response, each building on the last.
- Skipping or mishandling any step can invalidate all findings that come after it.
- Applications include incident response, cybercrime prosecution, insider threat investigations, compliance audits, and data breach litigation.
- Investigations tied to litigation require certified examiners who can meet court-admissible evidentiary standards.
What Is the Network Forensics Process?
Network forensics is the methodical collection and analysis of network traffic, logs, packet captures, and flow data to establish a factual record of what occurred on a network — who communicated with whom, when, and what was transmitted.
The intended outcome is specific and legally defensible. A completed examination typically establishes:
- How the incident occurred and which systems were affected
- What was communicated, and between which parties
- Whether sensitive data was accessed or exfiltrated
How It Differs From Endpoint Forensics
These two disciplines are complementary, not interchangeable:
| Discipline | Evidence Type | Focus |
|---|---|---|
| Endpoint/Computer Forensics | Static data stored on devices | Files, artifacts, user activity on individual machines |
| Network Forensics | Dynamic data in motion across systems | Traffic flows, communications, cross-system activity |
Complex investigations use both. Endpoint forensics confirms what happened on a machine; network forensics explains how the attacker arrived, what they communicated externally, and whether data left the environment.
Why Network Forensics Matters in Digital Investigations
Multi-stage attacks — those involving lateral movement, command-and-control communication, or staged exfiltration — leave evidence trails that span systems and often cannot be reconstructed from any single device. Network-level data captures the connections between those systems.
The scale of the problem supports this. The 2025 Verizon Data Breach Investigations Report analyzed over 22,000 incidents and found that system intrusion accounted for 53% of confirmed breaches, with ransomware present in 44%. Median dwell time for non-actor-disclosed breaches was 24 days — meaning investigators routinely need to reconstruct activity that occurred weeks before detection.
The Legal and Compliance Dimension
Network forensics isn't just a technical function. In regulated sectors, it's a documented requirement:
- HIPAA (45 CFR 164.308 and 164.312) requires audit controls that record and examine activity in systems containing electronic protected health information.
- GDPR Article 5 governs how personal data is processed, retained, and protected — directly affecting what can be captured and how long it can be held.
- ECPA (18 U.S.C. § 2511) generally prohibits intercepting electronic communications without authorization, creating legal boundaries around what collection methods are permissible.
Compliance requirements determine what must be collected. Courtroom standards determine whether that collection holds up. Findings must meet the evidentiary framework established in Daubert v. Merrell Dow Pharmaceuticals (1993) and extended to technical expert testimony by Kumho Tire Co. v. Carmichael (1999). Forensic methodology must be demonstrably reliable and defensible under cross-examination — not merely accurate in isolation.
Organizations without proper network forensics capability face concrete consequences:
- Inadmissible evidence from improper collection or chain-of-custody failures
- Regulatory exposure when incident response goes undocumented
- Failed prosecutions where methodology gaps undermine expert testimony
- Extended breach windows when incomplete data delays attribution and containment

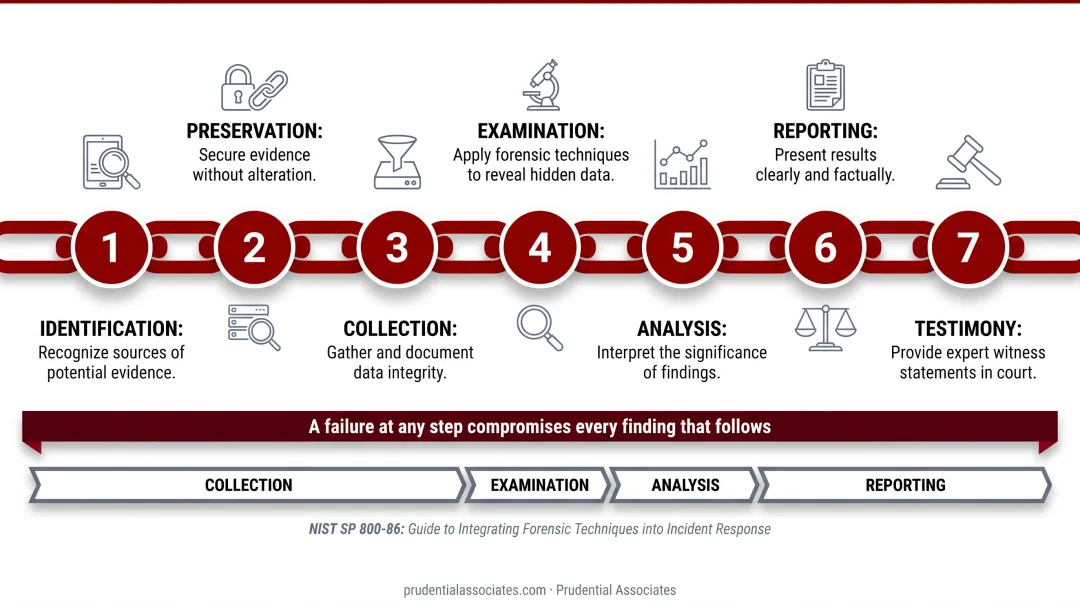

How the Network Forensics Process Works — Step by Step
The process follows a strict, ordered sequence. A failure at any one step can compromise every finding that comes after. This is the fundamental distinction from general security monitoring, where imperfect data collection is acceptable. In forensic investigations, integrity must be demonstrable at every stage.
NIST SP 800-86, Guide to Integrating Forensic Techniques into Incident Response, defines the forensic activity framework as collection, examination, analysis, and reporting. The seven-step process below expands on that foundation, translating each phase into the specific actions required for legally defensible network investigations.
Step 1: Identification
Investigators begin by defining scope: which network segments are relevant, what timeframes are under investigation, and which data sources are needed. These decisions directly shape every subsequent step and must be documented to demonstrate that the investigation was logically bounded — not arbitrary.
Step 2: Preservation
Preservation protects the integrity and chain of custody of all network evidence. This means:
- Hashing packet captures immediately after collection (SHA-256, as specified in NIST FIPS 180-4) so any later alteration is detectable
- Working only with verified copies, never the original "best evidence"
- Documenting every custodial transfer
This step is what separates network forensics from routine IT investigation. Without it, the NIJ notes that evidence may be excluded or given less weight in court proceedings. Prudential Associates' preservation process uses write-blocking, validated imaging methods, and cryptographic hashing — ensuring evidence remains unchanged from the point of collection forward.
Step 3: Collection
Data is gathered from routers, switches, firewalls, intrusion detection systems, and packet capture tools. Every source, method, and timestamp must be documented. Collection formats include:
- Full packet capture (PCAP): captures raw traffic content, preserving complete payload data for reconstruction
- NetFlow records: logs connection metadata — source, destination, volume, and timing — without storing full packet content
- System and application logs: records activity from servers and network devices, filling gaps where packet capture wasn't deployed
What gets collected should be driven by the scope defined in Step 1, not by convenience or what's easiest to access.
Step 4: Examination
Examiners review collected data for indicators of compromise (IOCs): unusual IP communications, protocol misuse, unexpected data volumes, and suspicious connection timing. Both visible data and metadata are examined.
This step requires analysts who know what normal network behavior looks like in order to recognize what is anomalous. The distinction matters — volume alone doesn't indicate malicious activity without a baseline for comparison.
Step 5: Analysis
Analysis connects examination findings into a coherent timeline. The goal is to establish:
- How the attack began
- How it spread across systems
- Which assets were involved
- What data may have been accessed or exfiltrated
Investigators apply SIEM correlation to link events across disparate log sources, behavioral analysis to detect deviations from established baselines, and traffic flow analysis to map lateral movement between systems.
Credentials like the GIAC Network Forensic Analyst (GNFA) and GCFA validate the analytical methodology needed to produce findings that hold up under legal scrutiny. Prudential Associates' team holds both, along with GCIH, CISSP, CEH, and OSCP — credentials that together address incident handling, attacker methodology, and the security context required to interpret network evidence accurately.
Step 6: Presentation
Forensic findings must be documented in structured reports that serve multiple audiences simultaneously. Prudential Associates' reports include a formal assignment summary, summary of findings, detailed technical analysis, activity timelines, hash verifications, and evidentiary exhibits.
The structure is deliberate: technical reviewers can validate methodology through the detailed analysis and hash records, while executives, judges, and juries can follow the narrative without requiring specialized knowledge.
Presentation is as important as collection. An examiner must be prepared to defend every finding, explain every methodology choice, and anticipate challenges from opposing counsel. Expert witness testimony in state and federal courts is a core capability — Prudential Associates' CEO has testified as a digital forensics expert on more than 500 occasions.
Step 7: Incident Response
The final step translates findings into action:
- Containing the active threat
- Remediating the vulnerabilities exploited
- Notifying affected parties where legally required
- Implementing measures to prevent recurrence
This step closes the loop between investigation and security improvement. Documented forensic findings also directly support insurance claims, regulatory filings, and civil or criminal proceedings. Prudential Associates provides remediation guidance, immediate action plans, and coordination with law enforcement where appropriate.
Key Factors That Affect a Network Forensics Investigation
Evidence quality depends heavily on what was captured before the investigation begins. Organizations without packet capture tools, defined log retention policies, or network segmentation often discover that critical evidence never existed to begin with.
OMB M-21-31, the federal logging mandate, requires most logs to be retained 12 months active and 18 months in cold storage, with full packet capture data retained for a minimum of 72 hours. These benchmarks reflect what investigators actually need to reconstruct incidents retrospectively.

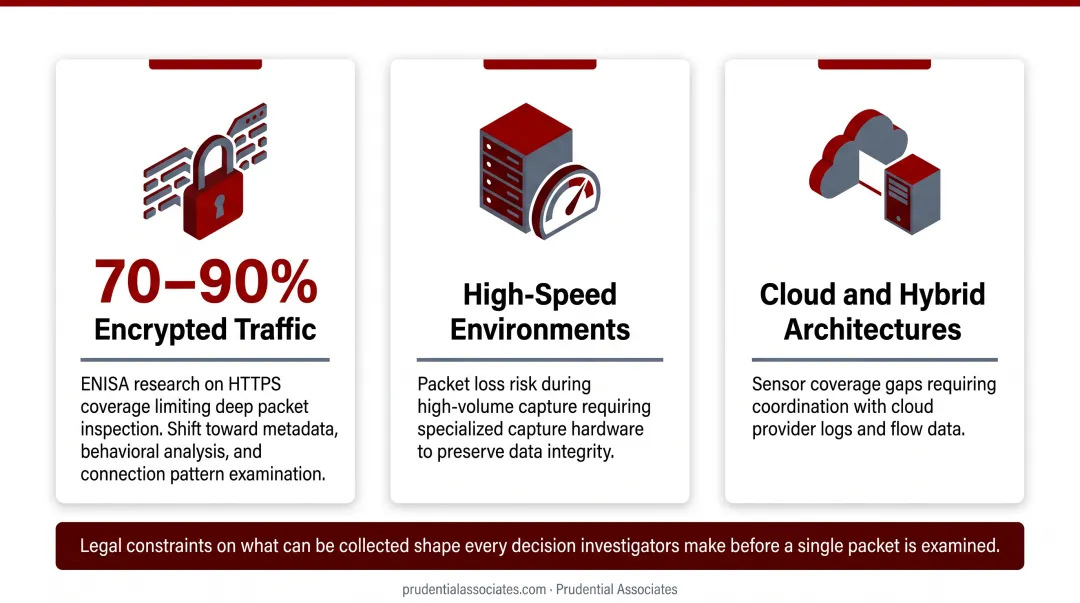

Conditions That Complicate Investigations
- Encrypted traffic — ENISA research shows HTTPS encryption covers 70–90% of loaded web pages, limiting deep packet inspection. Investigators shift to metadata, behavioral analysis, and connection pattern examination.
- High-speed environments — Packet loss during capture is a real risk at scale; specialized capture hardware is required to maintain data integrity.
- Cloud and hybrid architectures — Sensor coverage gaps mean some traffic flows are invisible to on-premises collection tools, requiring coordination with cloud provider logs and flow data.
Technical challenges don't exist in isolation. Legal constraints on what can be collected shape every decision investigators make before a single packet is examined.
Legal Constraints on Collection
Privacy laws govern the scope of what can be captured and retained:
- HIPAA — Requires activity monitoring in ePHI systems but restricts what constitutes permissible access
- GDPR — Mandates data minimization and limits retention periods
- ECPA — Establishes when network interception is and isn't authorized
Engaging legal counsel early in the process ensures investigators stay within these frameworks without inadvertently destroying the evidentiary value of what they do collect.
Common Misconceptions About Network Forensics
"Network forensics is just monitoring with better logs."
Monitoring detects threats in real time and can tolerate gaps. Forensics must reconstruct a complete, verifiable record that withstands legal scrutiny. The standards are categorically different: one is operational, the other is evidentiary.
"Our IT team can handle a forensic investigation internally."
Network forensics requires deep networking knowledge plus familiarity with evidence standards, chain-of-custody procedures, and how to present findings under cross-examination.
Kumho Tire extended Daubert's reliability gatekeeping to all technical expert testimony. An internal analyst who cannot demonstrate that their methodology is reliable and peer-validated will face serious challenges in any legal proceeding.
"Encryption makes network forensics useless."
Encryption limits what you can see inside packets. It doesn't hide connection timing, frequency, data volume, certificate details, or endpoint behavior. Behavioral analysis and metadata examination allow investigators to draw meaningful conclusions even in heavily encrypted environments — the attacker's fingerprint is often visible in how they communicate, not just what they communicate.
Frequently Asked Questions
What are the key steps in a network forensics investigation?
The seven steps are: Identification, Preservation, Collection, Examination, Analysis, Presentation, and Incident Response. The sequence is not flexible — each step depends on the integrity of the one before it, and a failure at any stage can compromise all findings that follow.
What is network forensics used for?
Network forensics is used across cybercrime investigations, data breach response, insider threat detection, compliance auditing, and legal proceedings. It provides cross-system visibility that endpoint-only tools cannot, making it essential for reconstructing multi-stage attacks that involve lateral movement or external communication.
What is forensic data collection?
Forensic data collection is the process of gathering network evidence — packets, logs, flow records — in a documented, integrity-preserving manner. It differs from general data collection because it must maintain a verifiable chain of custody for use in legal or administrative proceedings.
What are the processes and procedures in a digital forensic investigation?
Digital forensic procedures are formalized specifically to ensure findings are repeatable, defensible, and legally admissible. Documentation standards, chain-of-custody controls, and validated tools distinguish a forensically sound investigation from a general IT review.
What do network forensic examiners look for?
Examiners look for indicators of compromise: anomalous connection patterns, unauthorized data transfers, protocol misuse, and command-and-control communications. They examine both traffic content and metadata for evidence of lateral movement and data exfiltration.
What is an example of a network forensic technique?
Packet capture (PCAP) analysis is a foundational technique: investigators capture raw packets to reconstruct communications, identify malicious payloads, and establish a timeline of attacker activity. Per NIST SP 800-61r2, packet capture is often the fastest way to collect necessary data during an active network incident.
Conclusion
Network forensics — from identification through incident response — is a structured discipline designed to produce evidence that is technically accurate, legally defensible, and operationally actionable. The value lies in proving what happened in ways that hold up under scrutiny — whether in a courtroom, a regulatory proceeding, or an executive briefing.
Effective network forensics requires more than tools. It demands certified examiners, documented methodology, and the investigative acumen to connect technical findings to real-world legal and business outcomes.
